Understanding Key Components of a Centrifugal Pump

Centrifugal pumps are essential in various industries, including water treatment, oil and gas, chemical processing, and construction. Their efficiency and reliability depend on the seamless operation of several critical components. This guide delves into the primary parts of a centrifugal pump, highlighting their functions and significance in fluid handling applications.

1. Impeller: The Heart of the Pump

The impeller is a rotating component equipped with vanes or blades. Its primary function is to transfer energy from the motor to the fluid, increasing the fluid’s velocity and pressure. Selecting the appropriate impeller type is crucial for applications like grinder pumps, trash pumps, and diaphragm pumps, ensuring optimal performance and longevity. Depending on the application, impellers come in various designs:

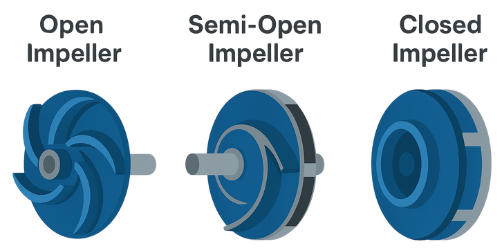

Open Impellers

Open impellers have vanes that are attached to a central hub with no shroud (cover) on either side. Because of their simple design and wide passages, they are well-suited to handling fluids containing solids, slurries, or fibrous materials and are commonly found in wastewater treatment and slurry applications.

Advantages:

• Less prone to clogging

• Easier to clean and maintain

• Better for abrasive or viscous fluids

Disadvantages:

• Less efficient than closed designs

• More wear over time, especially at high speeds

• Typically require more frequent maintenance

Applications:

Open impellers are ideal for:

• Trash pumps handling debris-heavy water

• Grinder pumps used in wastewater systems

• Slurry transfer in mining or construction

• Industrial processes with solid-laden fluids

Semi-Open Impellers

Semi-open impellers have a shroud on one side, usually the back, while the other side is open. This design offers a balance between solid-handling capability and hydraulic efficiency.

Advantages:

• Good compromise between open and closed impeller designs

• Can handle some suspended solids

• Improved efficiency over open impellers

• Easier to manufacture and maintain than closed impellers

Disadvantages:

• Still less efficient than fully closed designs

• Requires tight clearance control between the impeller and casing

Applications:

Semi-open impellers are commonly used in:

• Chemical processing and fluid handling systems

• Pumps moving liquids with moderate solids content

• Well servicing when small particles or debris are present

• Light sludge or mud transfer

Closed Impellers

Closed impellers are fully enclosed with shrouds on both sides of the vanes. This design is the most efficient and commonly used in clean fluid applications where solids are not a concern. Best for clean liquids, providing high efficiency and reduced wear.

Advantages:

• Highest efficiency of the three types

• Ideal for high-flow and high-pressure systems

• Reduced wear and longer lifespan in clean environments

Disadvantages:

• Cannot handle solids or fibrous materials

• More difficult to clean and repair

• Requires tight tolerances and higher manufacturing cost

Applications:

Closed impellers are found in:

• Centrifugal pumps for municipal water, HVAC, and clean chemical transfer

• Webtrol pumps for booster applications

• Fluid processing equipment in sanitary or controlled environments

• Horizontal directional drilling systems using clean drilling fluids

2. Casing and Volute: Directing Fluid Flow

The casing, often designed as a volute, surrounds the impeller and serves multiple purposes:

• Fluid Containment: It houses the fluid being pumped, maintaining system pressure.

• Energy Conversion: The volute design gradually expands, converting the fluid’s kinetic energy into pressure energy, facilitating efficient fluid discharge.

Proper casing design is vital in applications like horizontal directional drilling and fluid processing equipment, where precise fluid control is essential.

3. Shaft and Bearings: Ensuring Smooth Operation

The shaft connects the impeller to the motor, transmitting mechanical energy. Bearings support the shaft, allowing smooth rotation and reducing friction. Key considerations include:

• Alignment: Proper shaft alignment prevents vibrations and wear.

• Bearing Selection: Choosing the right bearings ensures durability, especially in demanding environments like well pump replacement and hydra-trech pump operations.

Regular maintenance of shafts and bearings is crucial for the longevity of pump and equipment systems.

4. Additional Essential Components

Beyond the primary parts, several other components play significant roles:

• Mechanical Seals: Prevent fluid leakage along the shaft.

• Wear Rings: Maintain efficiency by minimizing leakage between the impeller and casing.

• Stuffing Box: Houses the packing material, providing a seal around the shaft.

These components are integral in various centrifugal pump applications, ensuring reliable and efficient fluid handling solutions. For more information about c-pumps, check out these 12 types of centrifugal pumps and their applications!

Ask A C-Pump Partner

Understanding the components of a centrifugal pump is essential for selecting the right pump and ensuring its efficient operation. Whether dealing with webtrol pumps, grinder pumps, or trash pumps, knowledge of these components aids in making informed decisions, optimizing performance, and extending equipment lifespan.
